BMW iX M60 (i20): Engine & Technical Data

ENGINE AND TECHNICAL DATA OF THE BMW iX M60.


Powertrain type	Electric
Power in kW (hp)	240 (326)
Torque in Nm	630
Transmission	1-speed, automatic
Drivetrain	All-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	240 (326) / 102 (139)
(Nominal) torque in Nm	630


Acceleration 0–100 km/h in s	6.1
Electric top speed in km/h	200

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	21.4 - 19.4
Electric range, WLTP in km ²	403–435
Pass-by noise in dB(A)	67 ⁶

³
Battery capacity in kWh	74.1
Added range after 10 minutes of high-power charging in km ³	102 - 133
Maximum charging power AC in kW	11 / 22
Charging time AC 0–100% in h	4
Maximum charging power DC in kW	150
Charging time DC 10–80% in h	0:31

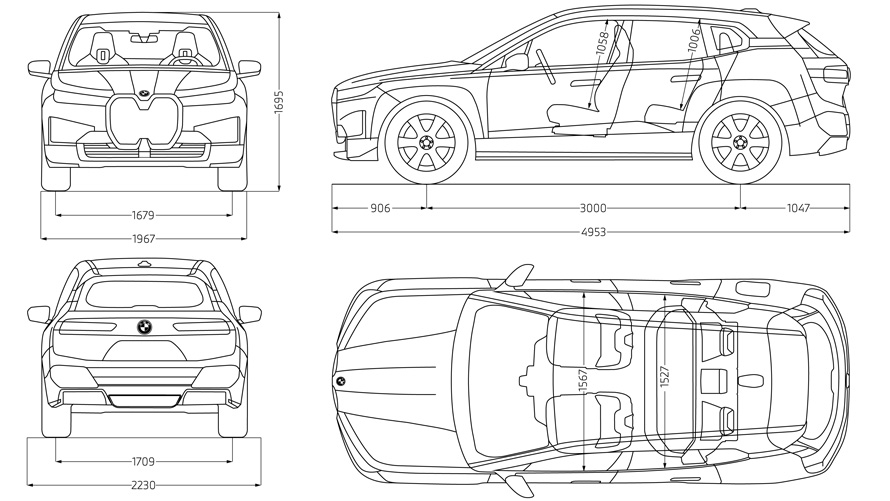

4,953 mm
1,967 mm
1,695 mm
Length in mm	4,953
Width in mm	1,967
Height in mm	1,695
Width incl. mirrors (driver / passenger side) in mm	2,230
Wheelbase in mm	3,000
Vehicle curb weight in kg ⁴	2,440
Permissible gross weight in kg	3,010
Payload in kg	645
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	- / 100
Luggage capacity in l	500–1,750


Powertrain type	Electric
Power in kW (hp)	385 (523)
Torque in Nm	765
Transmission	1-speed, automatic
Drivetrain	All-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	385 (523) / 140 (190)
(Nominal) torque in Nm	765


Acceleration 0–100 km/h in s	4.6
Electric top speed in km/h	200

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	21.3 - 19.5
Electric range, WLTP in km ²	587–633
Pass-by noise in dB(A)	66 ⁶

³
Battery capacity in kWh	108.8
Added range after 10 minutes of high-power charging in km ³	145 - 196
Maximum charging power AC in kW	11 / 22
Charging time AC 0–100% in h	4
Maximum charging power DC in kW	195
Charging time DC 10–80% in h	0:35


4,953 mm
1,967 mm
1,695 mm
Length in mm	4,953
Width in mm	1,967
Height in mm	1,695
Width incl. mirrors (driver / passenger side) in mm	2,230
Wheelbase in mm	3,000
Vehicle curb weight in kg ⁴	2,585
Permissible gross weight in kg	3,145
Payload in kg	635
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	- / 100
Luggage capacity in l	500–1,750


Powertrain type	Electric
Power in kW (hp)	455 (619) ⁷
Torque in Nm	1,015
Transmission	1-speed, automatic
Drivetrain	All-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	397 (540) /-
(Nominal) torque in Nm	1,015


Acceleration 0–100 km/h in s	3.8
Electric top speed in km/h	250

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	24.7 - 22
Electric range, WLTP in km ²	500 - 563
Pass-by noise in dB(A)	69 ⁶

³
Battery capacity in kWh	108.6
Added range after 10 minutes of high-power charging in km ³	145 - 175
Maximum charging power AC in kW	11 / 22
Charging time AC 0–100% in h	11:0 / 6:15
Maximum charging power DC in kW	195
Charging time DC 10–80% in h	0:35


4,953 mm
1,967 mm
1,696 mm
Length in mm	4,953
Width in mm	1,967
Height in mm	1,696
Width incl. mirrors (driver / passenger side) in mm	2,230
Wheelbase in mm	3,000
Vehicle curb weight in kg ⁴	2,670
Permissible gross weight in kg	3,160
Payload in kg	565
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	- / 100
Luggage capacity in l	500–1,750

1 Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

2 Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

3 The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

4 The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

5 Trailer load depends on the vehicle options

6 The values measured in accordance with UN/ECE Regulation No. 51/EU Regulation 540/2014 are rounded.

7 Temporary uprating <10 seconds in excess of specified nominal value

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Find out more

Consumption and CO2 emissions.

BMW iX M60:

Energy consumption in kWh/100 km (WLTP): 24.7–22
Electric range in km (WLTP): up to 500–563
CO2 emissions in g/km: 0
